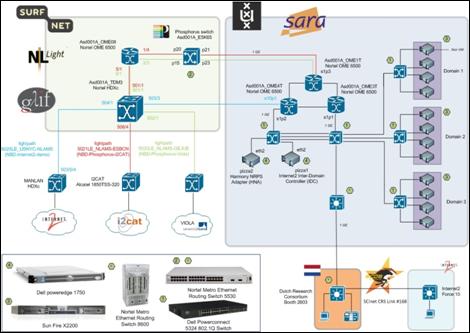

This Phosphorous-Internet2 testbed (i2CAT-UvA-I2) demonstrated the interoperability of multi-domain circuits controlled by different control planes. Phosphorus’ “Harmony” Network Service Plane coordinated access to Bonn’s VIOLA (Vertically Integrated Optical Testbed for Large Applications in DFN); i2CAT’s ARGIA (Canada’s User-Controlled LightPath system); and, Internet2’s Dynamic Circuit Network (DCN) Inter-domain controller (IDC).
The actual demo consisted of showing the setup of a path to VIOLA, i2CAT and Internet2 hosts by making requests in the Harmony NSP web GUI. All hosts ran a VLC streamer, so that when a path was successfully set up, a specific video playing on the VLC streamer from that host would be shown on the screen.
URL:
www.ist-phosphorus.eu/
http://staff.science.uva.nl/~wan/Papers%20folder/SC08_poster_v4
Collaborators:
Germany:
University of Bonn
Spain:
i2CAT
Netherlands:
University of Amsterdam (UvA); SARA; SURFnet
USA:
Internet2
